10 Way Blade Fuse Block with Screw Terminal Connection

Pre-order - Released 10 September 2020
Not available for pickup. Special order item available on back order only.

This Item Is Only Available On Pre-Order. Find Out More

Calculate Shipping

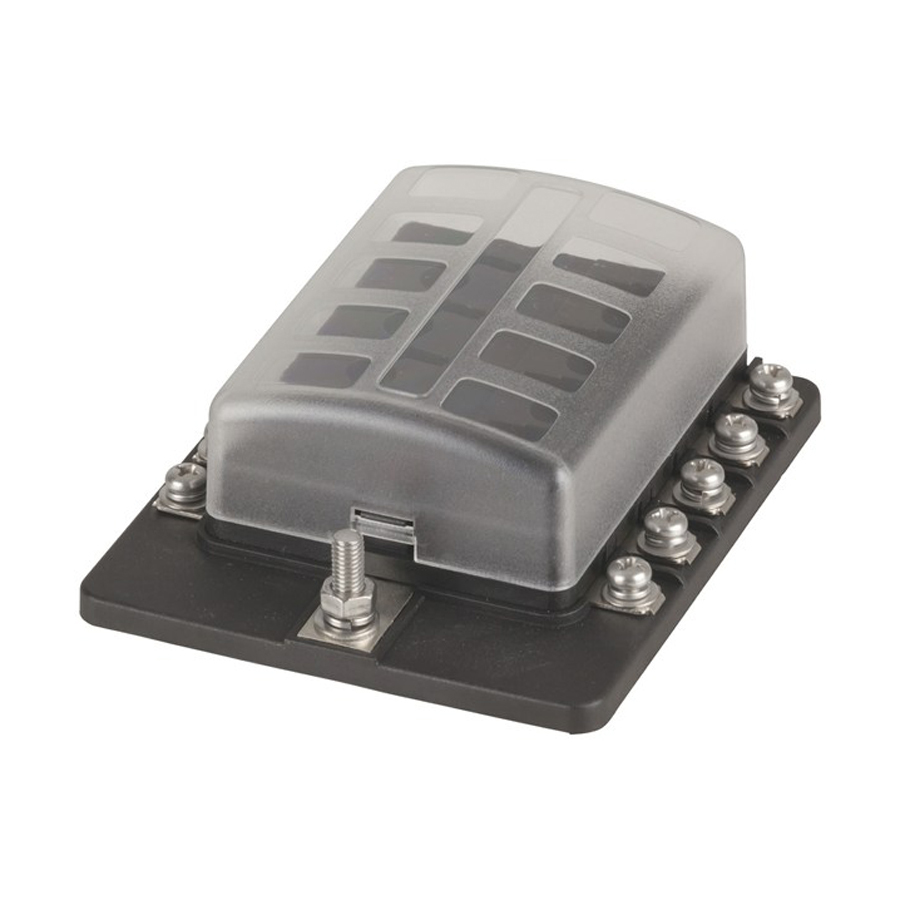

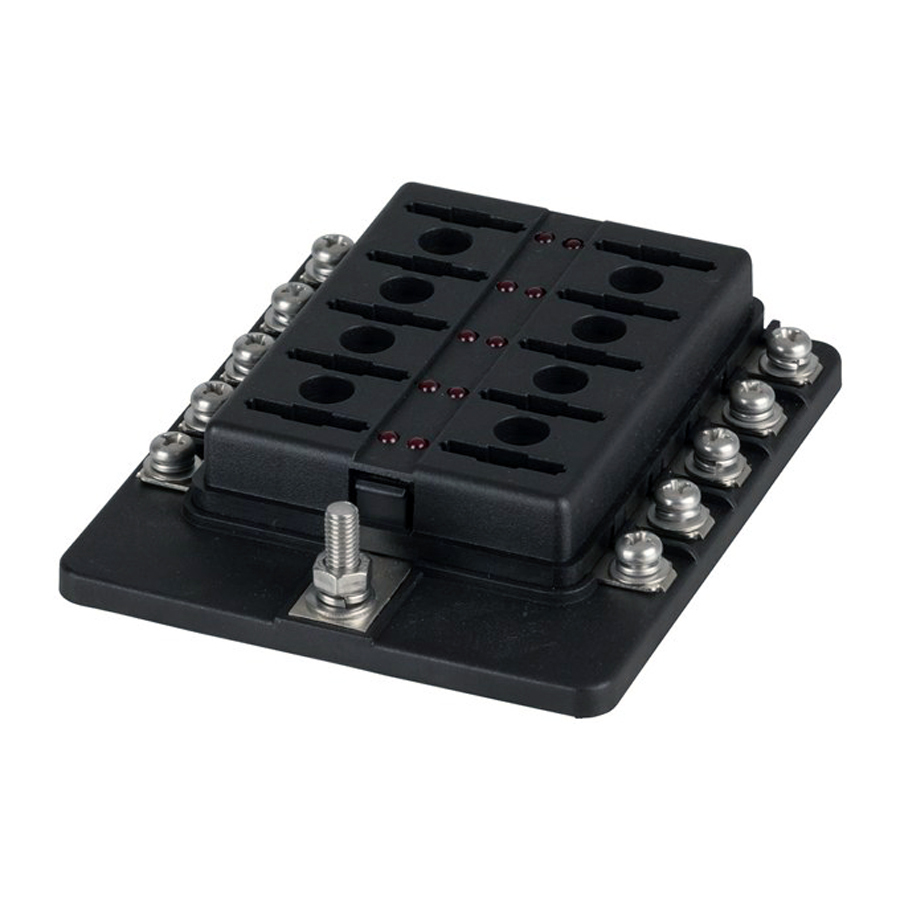

A convenient 10-way fuse block with integrated indicator LEDs. The clear plastic cover allows you to quickly fault-find without disturbing your wiring. Includes quality bolt-down output connections for eye-terminals connection. Suitable for use in 12-24V systems, 30A max per fuse channel. Input cable up to 4-gauge. Uses standard automotive blade fuses, and includes a handy sheet of common labels, to make identification of connections even easier.


Input Terminal Rating: 32VDC @ 100A Max.
Input Wire Size: 4-6 AWG
Output Terminal Rating: 30A Max. per Circuit
Output Wire Size: 12-16 AWG
Fuse: Automotive Blade up to 30A


Width: 85.0mm
Height: 37.0mm
Depth: 100.0mm
Weight: 116.0g


Barcode # 9319236730751
12 Month Manufacturer Warranty
