0-30v 5a LED Dipslay Regulated Laboratory Power Supply

$256.00
Sold Out


Calculate Shipping



Free Shipping [STANDARD] - $0.00
Excludes DG or bulk items (flooded or large lead acid batteries, large panels and generators).

Select precise voltage level and current limits to prevent overheating, burnout, and over-current for your projects and prototypes.

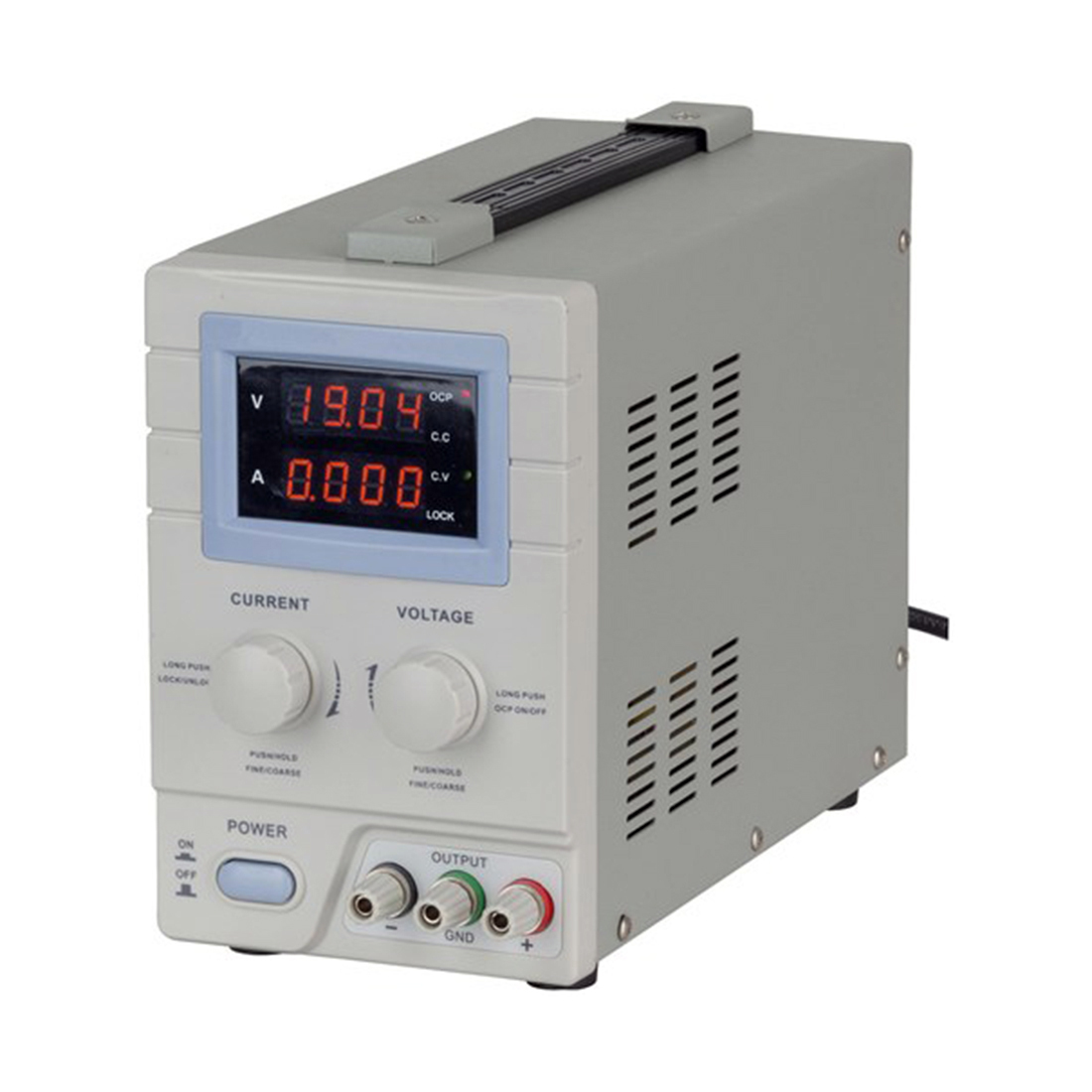

The compact construction uses surface mount technology and a powerful internal cooling system to deliver a highly flexible power source. With ripple voltage a tiny 1mV, you know you’re getting precisely the voltage required, reducing the risk of burnout or damage when testing and prototyping sensitive components. Output voltage is adjustable from 0 to 30VDC, and output current can be limited between 0 and 5A. Standard 4mm banana plug/binding posts provide output on the front of the unit, while a bright LED display keeps you informed of voltage and current.

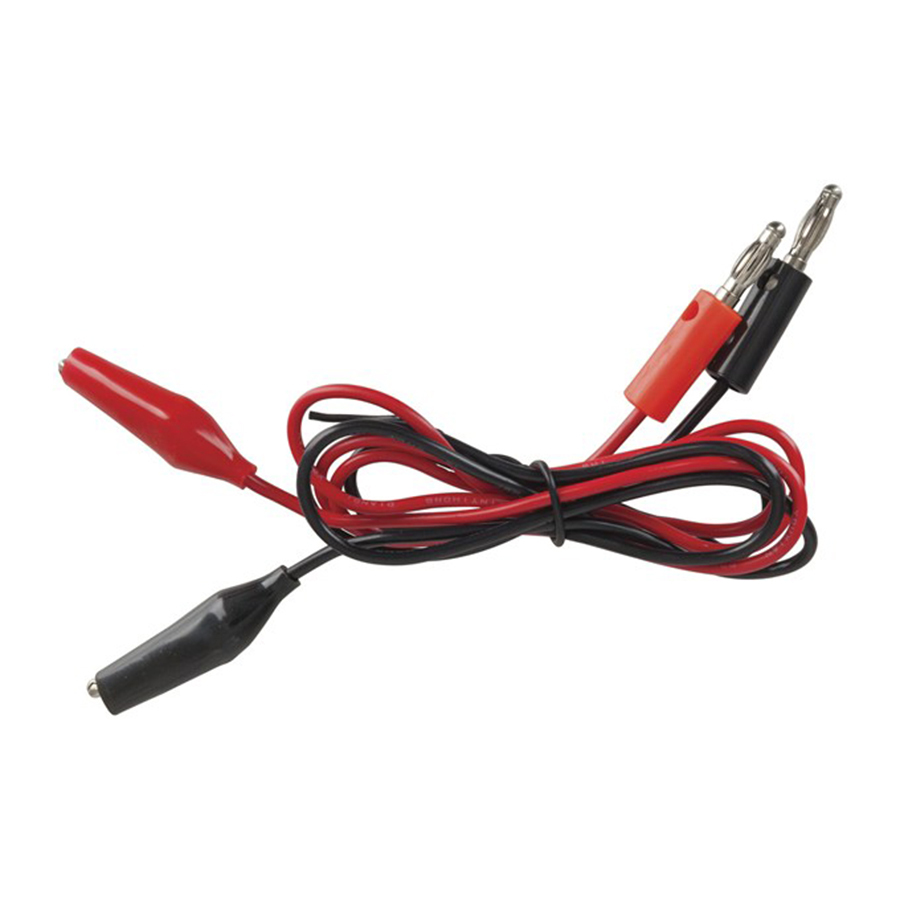

Unit is protected against short circuits and includes a short banana to alligator lead set.

Features:

Precise voltage level and current limit settings
1mV ripple voltage
Easy-to-use LED display panel
0-30v DC output adjustable (10mV accuracy)
0-5A DC output current adjustable (1mA accuracy)

Specifications:

AC Voltage Rating: 220-240v AC
AC Frequency: 50Hz
DC Current Rating : 0-5a
DC Voltage: 0-30v
Length: 270mm
Width: 120mm
Height: 185mm
Weight: 4.8kg
Regulation Type: Regulated
Voltage Display: Yes
Current Display: Yes
Number of Outputs: 1pc
Ripple Voltage: 1mV

(LABPSU30V)

SKU LABPSU30V
Barcode # 9319236676370
Brand

Powertech

12 Month Manufacturer Warranty
