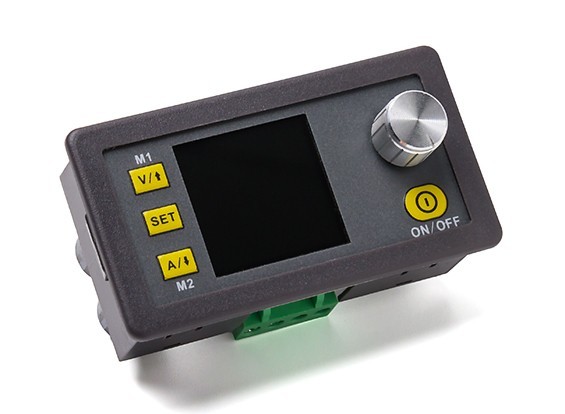

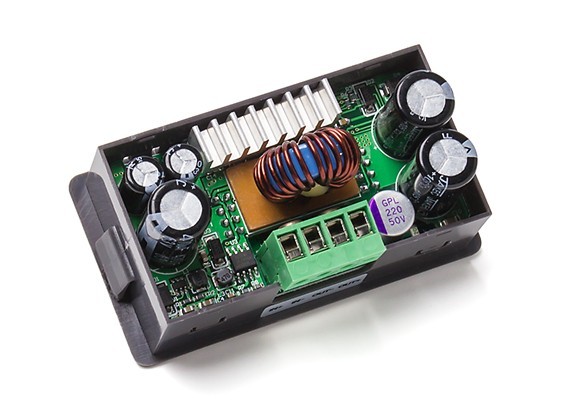

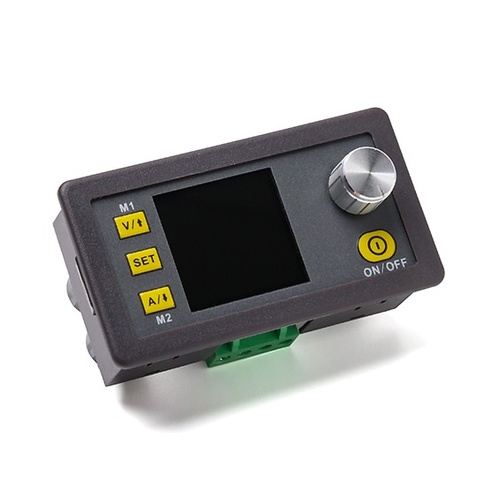

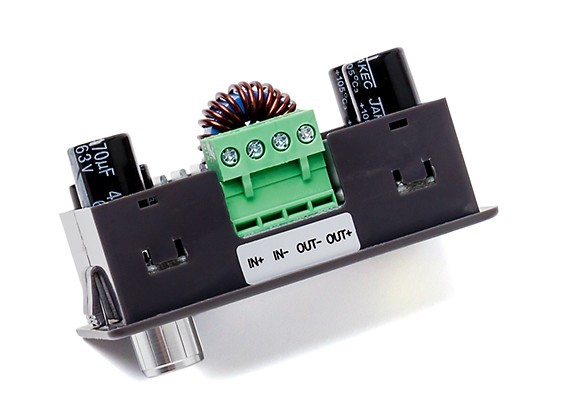

This voltage regulator and power supply module is an excellent DIY option to add modern functionality to an existing power supply or DIY power supply projects.
The unit is a panel mounted fully adjustable regulator that allows for adjustment of the output voltage 0-50v as well as current 0-05a. The LED screen will provide real time data including; actual voltage, current, output power and input power. The unit also features memory functionality to allow for user pre-set settings to suit various end applications.
Programmable power supply module
Adjustable output voltage
Adjustable output current
Wide input voltage range 6 to 55v
Output power range 250w
Power down storage function with 10 groups of pre-set values
Adjustable LCD brightness
Input Voltage Range: 6.00-55v
Output Voltage Range: 0-50v
Output Current: 0-5 Amps
Output Power Range: 0-250w
Weight: Approx 113g
Dimension: 79x43x48 mm
Hole Size: 71 x 39 mm
Output Voltage Resolution: 0.01V
Output Current Resolution: 0.001A
Output Voltage Accuracy: +/- (0.5% + 1 digits)
Output Current Accuracy: +/- (0.5% + 2 digit)
Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.
