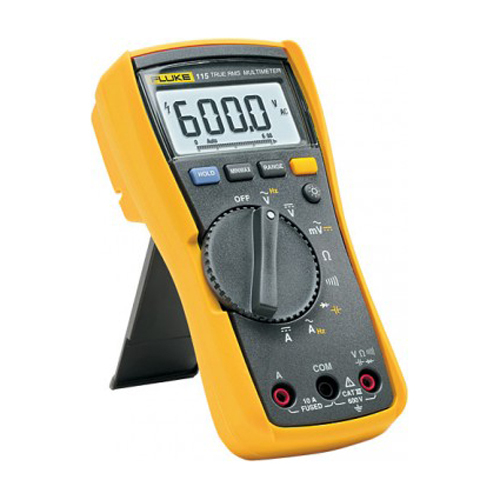

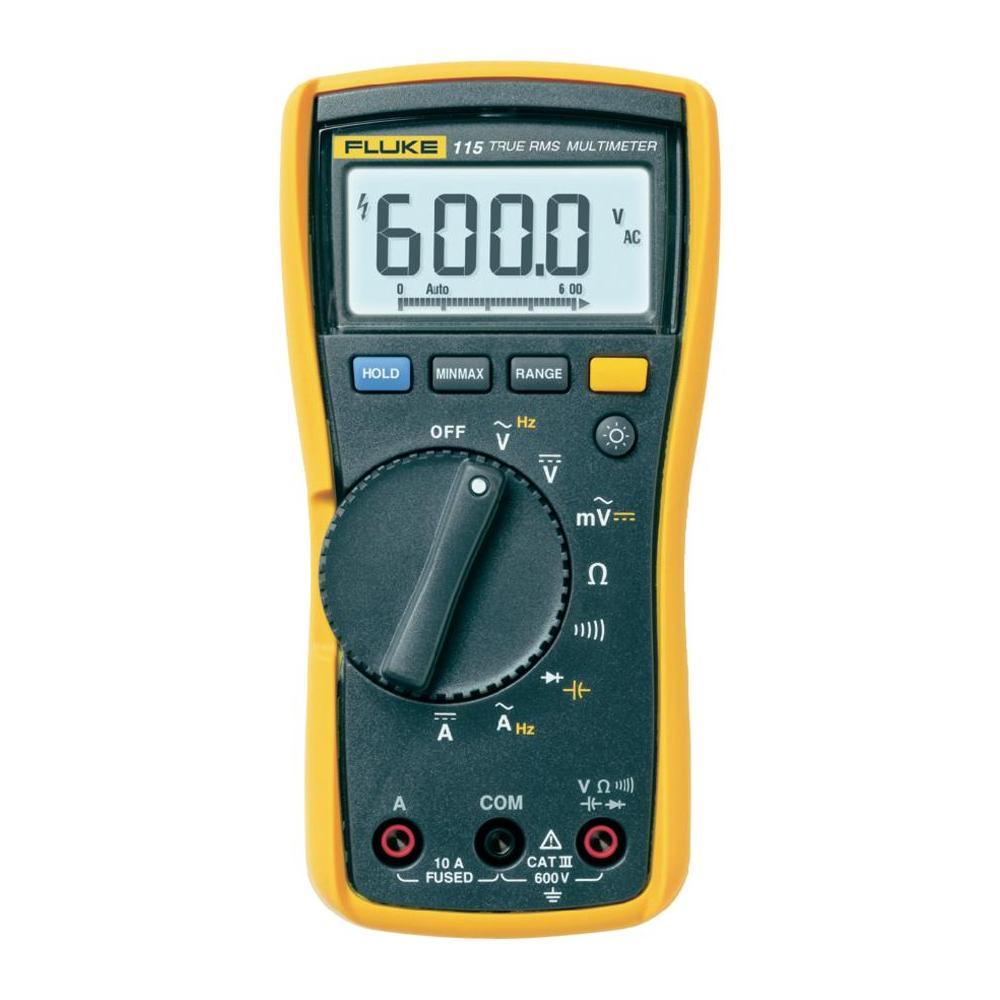

Designed by electricians and engineered by Fluke. The Fluke True RMS 115 Digital Multimeter is all you need for general electronic testing and field work. Fluke 115 offers simple operation, compact design and ease of use and 6000 count resolution. The Fluke 115 True RMS multimeter is the ultimate tester for the serious electrical enthusiast or the field professional.
Features:
Large white LED backlight to work in poorly lit areas
Resistance and continuity
Frequency and capacitance
Maximum Voltage ac/dc 600V
10A ac/dc current measurement (20 A overload for 30-seconds max)
Min/Max/Average to record signal fluctuations
CAT III 600 V safety rated
Specifications:
Absolute Maximum AC Current Measurement: 10A ac
Absolute Maximum AC Voltage Measurement: 600V ac
Absolute Maximum Capacitance Measurement: 9999µF
Absolute Maximum DC Current Measurement: 10A dc
Absolute Maximum DC Voltage Measurement: 600V dc
Absolute Maximum Resistance Measurement: 40 Mega ohm
AC Current Measurement Resolution: 0.001A ac
AC Voltage Measurement Resolution: 0.1mV ac
Battery Life: 400 Hours
Battery Type: 9V
Best AC Current Accuracy: +/- 1.5% + 3 Digits
Best AC Voltage Accuracy: +/- 1% + 3 Digits
Best Capacitance Measurement Accuracy: +/- 1.9% + 2 Digits
Best DC Current Accuracy: +/- 1% + 3 Digits
Best DC Voltage Accuracy: +/- 0.5% + 2 Digits
Best Resistance Measurement Accuracy: +/- 5% + 2 Digits
Capacitance Measurement Resolution: 1nF
DC Current Measurement Resolution: 0.001A dc
DC Voltage Measurement Resolution: 0.1mV dc
Dimensions: 46 x 84 x 167 mm.
Display Type LCD
Maximum Frequency: 1kHz
Operating Temperature: -10 to +50 Degrees Celsius
Resistance Measurement Resolution: 0.1 Ohm
Safety Category: CAT III 600 V
Safety Category Voltage: 600V
True RMS: Yes
Weight: 550g
Product brochure / datasheet can be downloaded by clicking the PDF icon just below the main image.
(FLUKE115)
